Lido - Revit

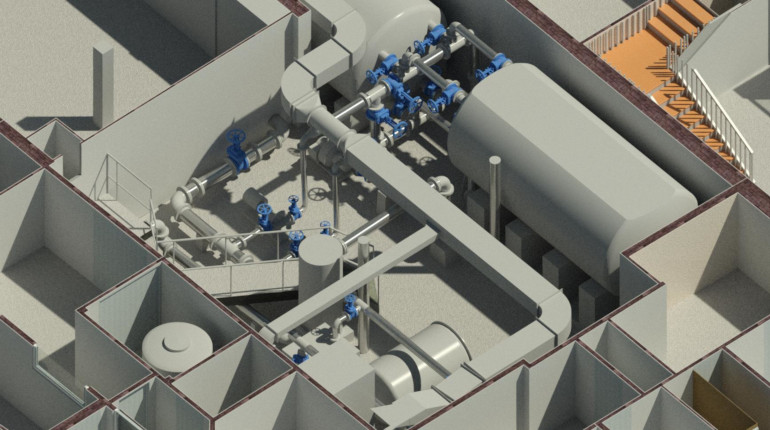

mep as-built revit model

Lido modelling including MEP.

The entire Lido was modelled from point cloud data, as expected there was a lot of MEP located in the lower ground level that was required to be modelled.

Members of our team have extensive experience modelling MEP from complete plant modelling, so we are well suited and understand the requirements surrounding MEP.

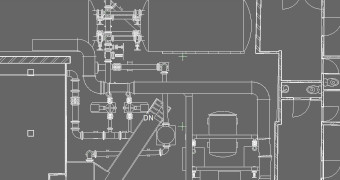

mep as-built revit plan

Without P&IDs and working directly with the point data, we are using the flange/pipe sizes to work out the correct pressure rating of the fittings and equipment and using this to create an as accurate as possible model.
