DGM as-built piping

Using the in built pipe modelling tools in Revit can be difficult when creating an as-built model, the auto routing wants piping to be as designed but in real life situations, things are never as designed.

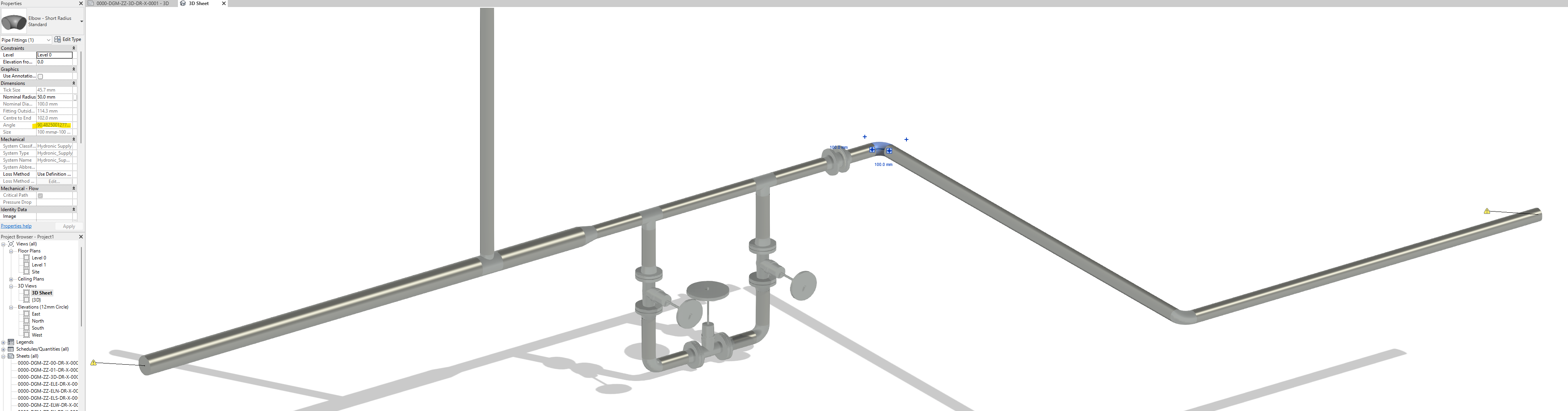

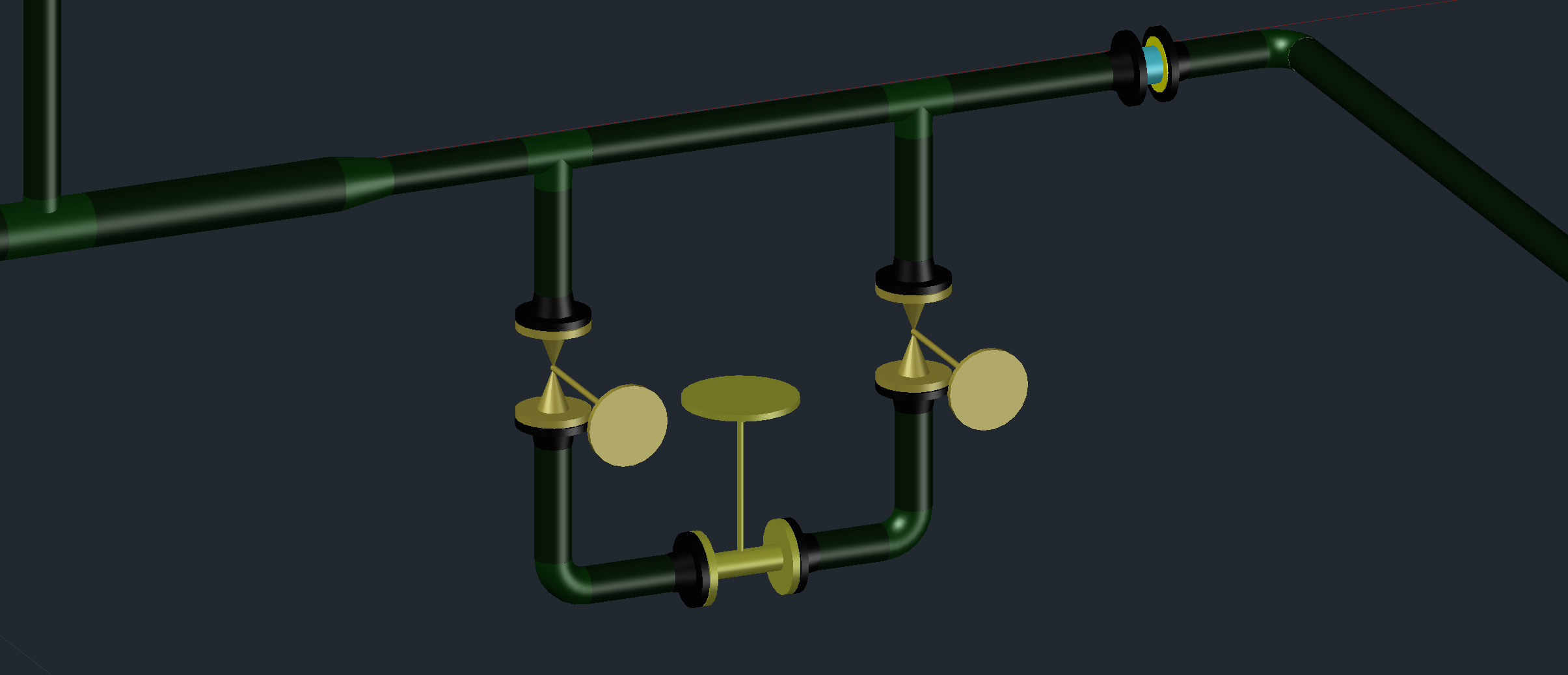

We have created our own intelligent pipe modelling software in AutoCAD to allow us to create as-built piping models to a 1:1 accuracy - this data can then be imported into Revit to provide perfect as-built piping models within Revit, keeping all the connections and intelligence throughout.



DGM Piping Advantages

The best way to get the feel of a building or site.

  • Perfect 1:1 piping modelling in AutoCAD and Revit.
  • Stored in the cloud so any updates to the AutoCAD model will be available within the Revit model.
  • Piping standards are used to create our models and our pipe fittings and accessories within Revit also use the same piping standards.
  • Gaskets are included as standard to be able to generate full parts lists.
